PEM Stacks & Integrated FC Systems

Ultra-lightweight, high-efficiency PEM stacks and integrated hydrogen fuel cell systems with BOP, engineered for UAVs, light electric vehicles (LEVs), and clean power generators.

Integrated Fuel Cell System

Integrated Fuel Cell System

System Output Voltage
24~60VDC(Adjustable)
Rated Power
1.5kW~3.6kW
Peak Power
3kW~5kW
Hybrid Lithium Battery(Optional)
14S/6S
System Weight
10~20Kg
Operating Temperature
-10~45°C
Maximium Flight Altitude
≤3000m
Explore More →

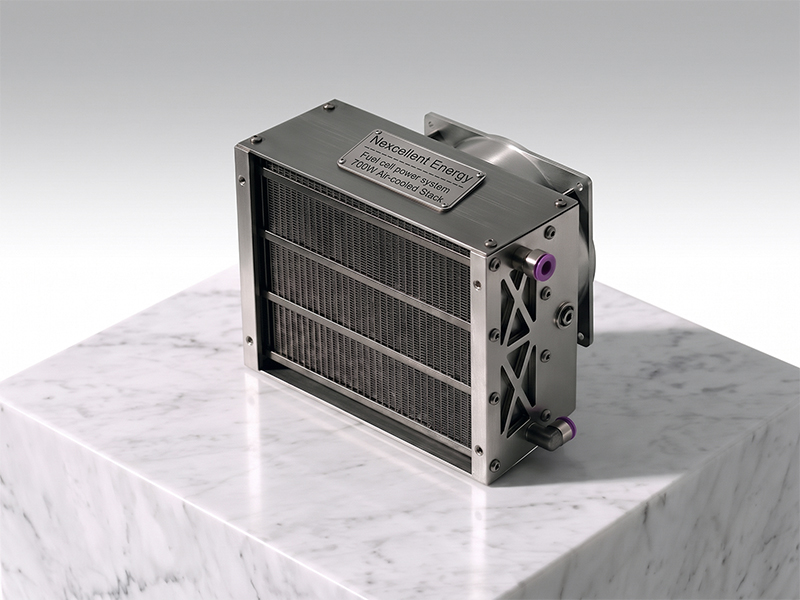

700W Air-cooled Stack

700W Air-cooled Stack

Output Voltage
17~32V
Rated Power
700W
Max Power
900W
Dimension
163x123x130mm
Weight
2kg
Operating Temperature
-5~40°C
Maximium Flight Altitude
≤3000m
1500W Air-cooled Stack

1500W Air-cooled Stack

Output Voltage
21~39V
Rated Power
1.5kW
Max Power
1.8kW
Dimension
144×207×188mm
Weight
3kg
Operating Temperature
-5~40°C
Maximium Flight Altitude
≤3000m
3600W Air-cooled Stack

3600W Air-cooled Stack

Output Voltage
55~90V
Rated Power
3.6kW
Max Power
3.9kW
Dimension
207x121x437mm
Weight
5kg
Operating Temperature
-5~40°C
Maximium Flight Altitude
≤3000m
